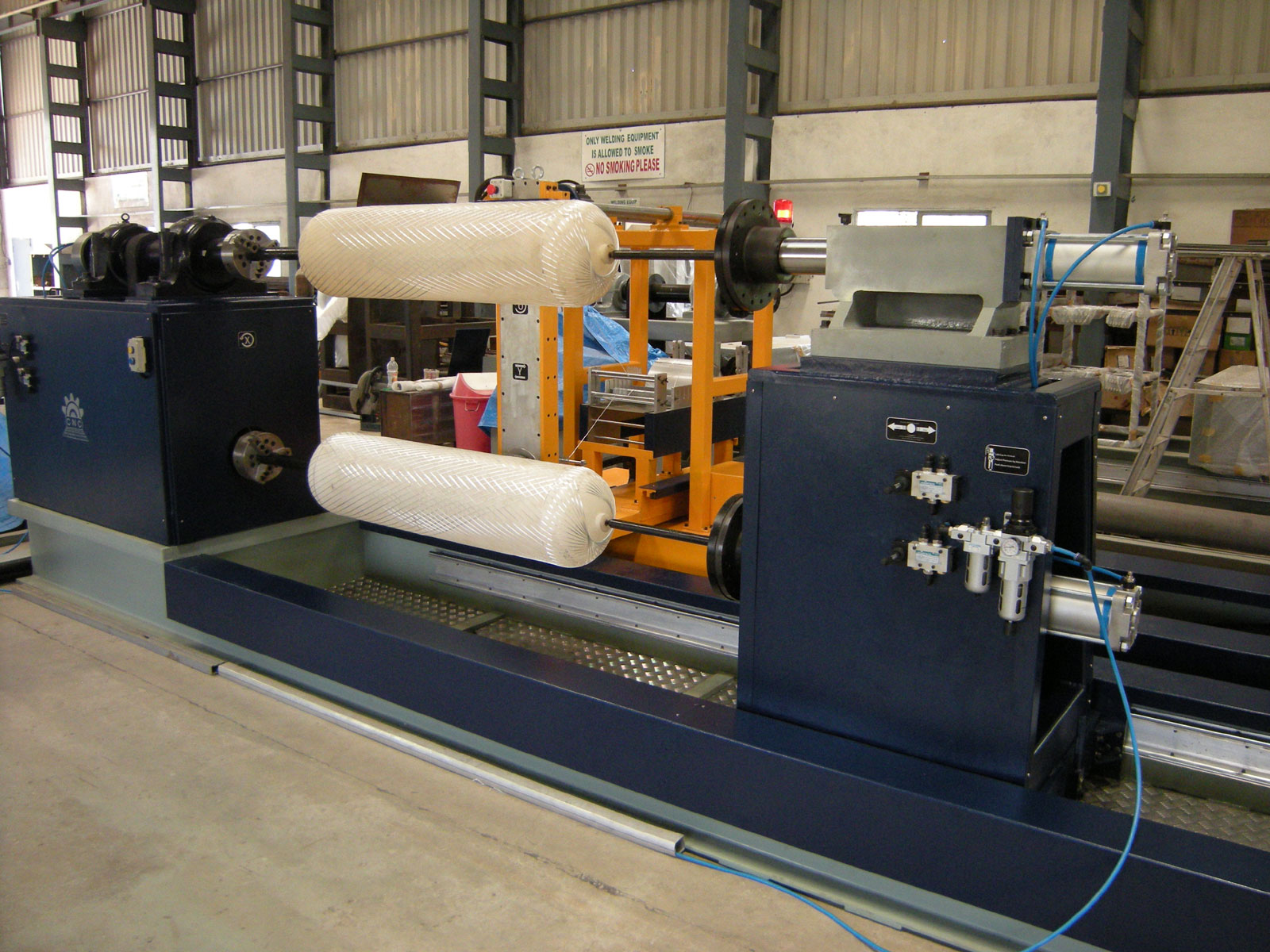

4-Axis Filament Winding Machine





4-Axis Winding Machine for Precision Composite Manufacturing

The 4 axis CNC filament winding machine from CNC Technics is designed to meet the evolving needs of composite product manufacturers. As one of the leading filament winding machine manufacturers in India, we offer high-performance systems with simultaneous multi-axis control for precise and efficient winding. This CNC filament winding machine enables high-speed, high-precision winding of a wide variety of fiber patterns ideal for producing pressure vessels, pipes, cylinders, aerospace components, and more.

The 4-axis winding setup provides the perfect balance between complexity and control, offering enhanced capability over traditional 2 or 3-axis filament winding machines without the additional cost of full 5 or 6-axis systems. This makes it an ideal solution for companies looking for performance, accuracy, and flexibility at a competitive filament winding machine price in India.

What Makes the 4-Axis Filament Winding Machine Stand Out?

Our 4 axis CNC filament winding machine includes the following simultaneously controlled movements:

• Mandrel Rotation (Axis 1): Precisely controlled mandrel rotation ensures uniform fiber layup.
• Carriage Movement (Axis 2): Linear motion along the mandrel length controls fiber placement and patterning.
• Fiber Delivery Head Traverse (Axis 3): Perpendicular movement enables angled and multi-layer winding.
• Helix Angle Adjustment (Axis 4): Adjusts fiber band orientation for complex geometries and reinforcement.

With all four axes working in sync, manufacturers can create complex winding profiles such as hoop, helical, polar, and customized combinations. This CNC filament winding machine ensures maximum efficiency and precision, reducing material waste and increasing consistency.

Built with High-Quality Components for Reliable Performance

We build our filament winding machines using premium-grade components from globally trusted brands to ensure reliability and low maintenance:

• SIEMENS – Control systems and motors
• THK, HIWIN, IGUS – Precision motion components
• GATES – High-performance belts and drives
• BONFIGLIOLI – Mechanical power transmission

All machines are fully assembled and tested at our in-house facility before dispatch, ensuring consistent quality and peak performance.

Applications of the 4-Axes Winding Machine

This 4 axis filament winding machine is widely used in:

• Aerospace & Defense: Lightweight, high-strength structural parts
• Automotive: Drive shafts, fuel tanks, tubes
• Energy Sector: Pressure vessels, storage tanks, wind turbine parts
• Sports Equipment: High-performance frames and shafts

Get in Touch for Pricing & Consultation

Looking for detailed specs or a tailored quote? Connect with leading filament winding machine manufacturers in India to explore how our 4 axis CNC filament winding machine fits your project.
