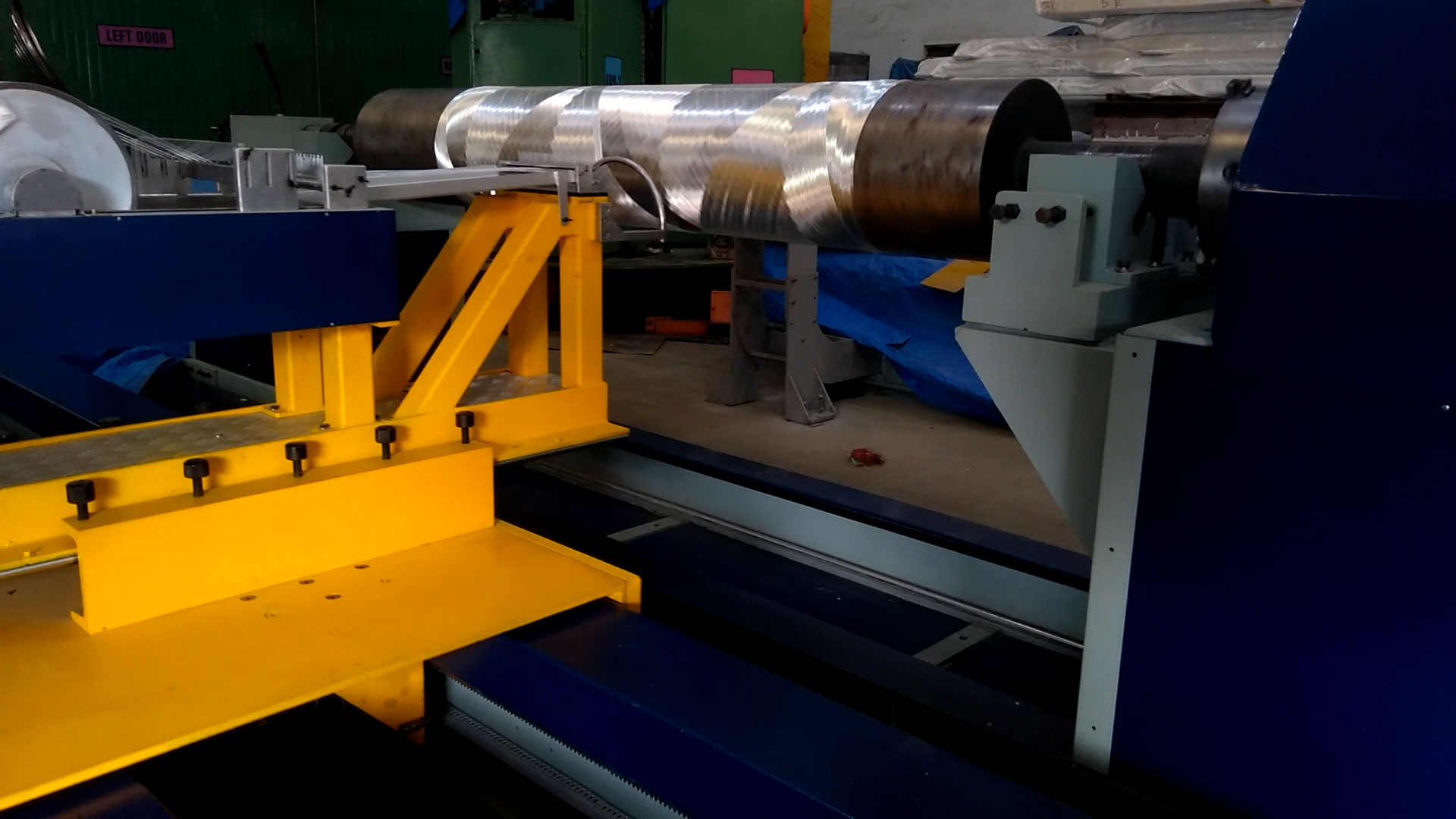

2-Axis Filament Winding Machine

Reliable. Efficient. Entry-Level Winding Solution.

The 2-axis filament winding machine by CNC Technics is a robust, entry-level solution designed for manufacturers who require consistent and efficient fiber winding for cylindrical and hoop-shaped components. Ideal for pressure vessels, pipes, and tubes, this machine is perfect for applications where simple winding patterns are sufficient but precision and automation are still essential.

Overview of the 2-Axis Filament Winding System

This machine operates with two simultaneous axes:

Mandrel Rotation (Axis 1): The core around which the fibers are wound. Speed and torque are precisely controlled for even fiber placement.
Carriage Movement (Axis 2): Moves linearly along the mandrel, enabling controlled fiber layering as the mandrel rotates.

These two axes work in perfect synchronization, allowing for hoop and helical winding patterns. With a simple user interface and CNC programming options, users can produce high-quality composite parts with minimal training.

Applications of 2-Axis Winding

The 2-axis filament winding machine is ideal for:

LPG and CNG cylinders
Industrial pipes and tanks
Simple composite tubes and shafts
R&D and training environments

This system is also widely used by educational institutions and entry-level composite manufacturers due to its affordability and ease of use.

Precision, Durability & Quality Components

CNC Technics machines are built with high-grade materials and feature components from world-class suppliers including:

SIEMENS – Control systems and motors
THK, IGUS – Precision linear motion components
GATES – Belts and drive components

Our 2-axis machine offers:

Long-term operational stability
High positional accuracy
Minimal maintenance needs
User-friendly operation with programmable logic control

Why Choose CNC Technics?

Our in-house design and manufacturing team ensures complete control over quality, customizations, and delivery. We provide:

After-sales technical support
Operator training
Custom builds for specific part requirements

Whether you’re just getting started with filament winding or need a reliable setup for simple production, this machine is engineered to grow with your business.
