3 Axes

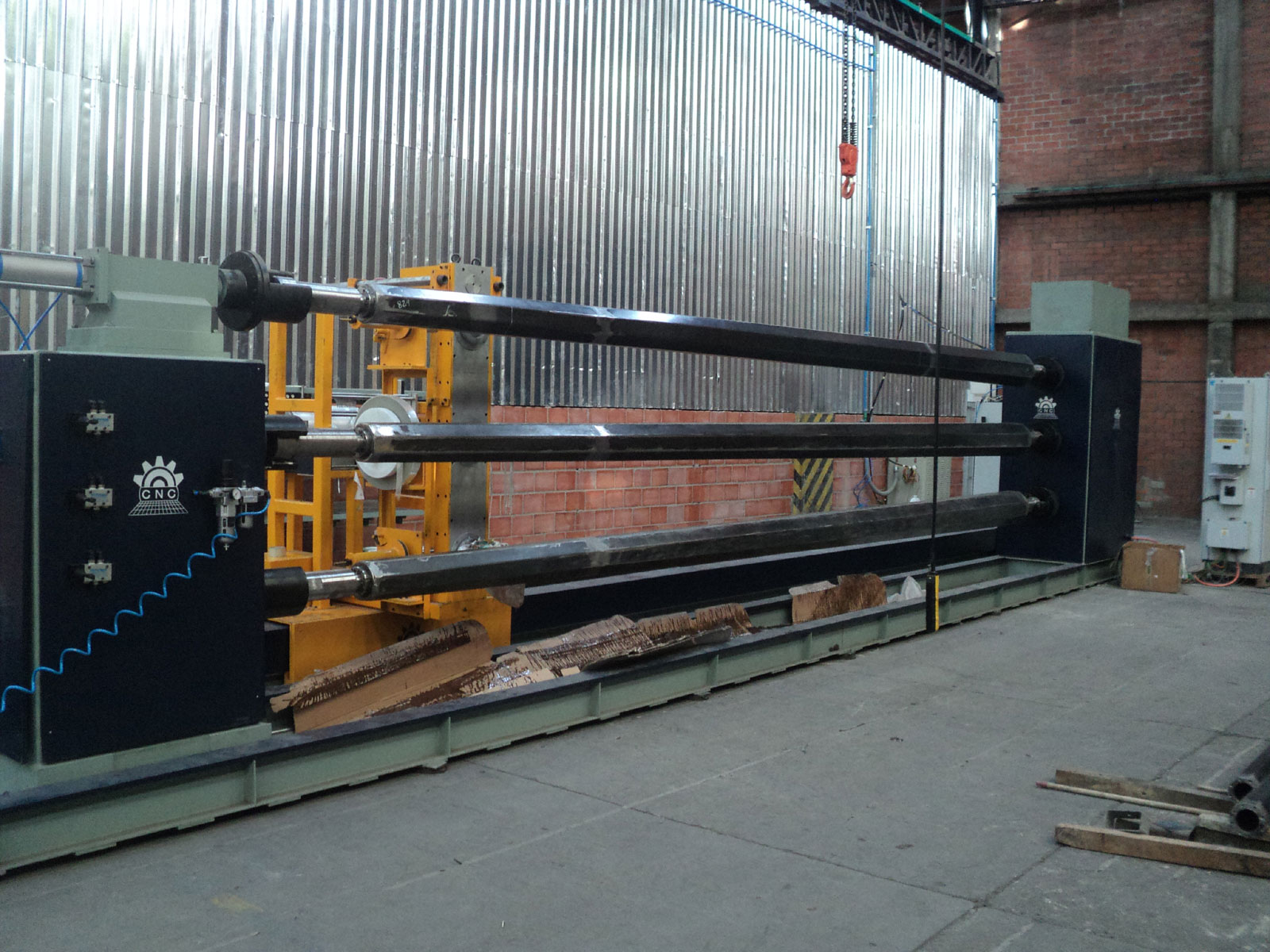

3-Axis Filament Winding Machine

More Flexibility. Better Control. Smarter Winding.

The 3-axis filament winding machine from CNC Technics brings enhanced flexibility and control for manufacturers who require more advanced fiber placement than basic systems allow. With the addition of a third axis, complex winding patterns like dome ends, polar wrapping, and variable angles become achievable.

Three Simultaneous Axes of Movement

• Mandrel Rotation (Axis 1)
• Carriage Movement (Axis 2)
• Cross-Feed or Fiber Delivery Angle Adjustment (Axis 3)

The third axis provides angular adjustment or lateral fiber band shifting, making it suitable for winding geodesic, polar, or customized shapes with high repeatability and precision.

Applications for 3-Axis Filament Winding

This system is ideal for:

• Composite gas tanks and pressure vessels
• Structural tubes with dome ends
• Lightweight defense and aerospace parts
• High-performance automotive components

Designed for Performance

Each CNC Technics 3-axis filament winding machine is engineered using high-torque motors, linear guides, precision sensors, and customizable winding software. Integration with top global component suppliers ensures durability and quality.

Benefits of the 3-Axis System

• Versatile winding angles
• Suitable for R&D and production
• Easy-to-program CNC interface
• Competitive filament winding machine price

Global Support & Customization

With installations in over 25 countries, CNC Technics provides full technical support, remote troubleshooting, and custom upgrades to match your product geometry and throughput needs.

Get a Quote
Learn more about our 3-axis systems and request a filament winding machine design consultation with our team.
